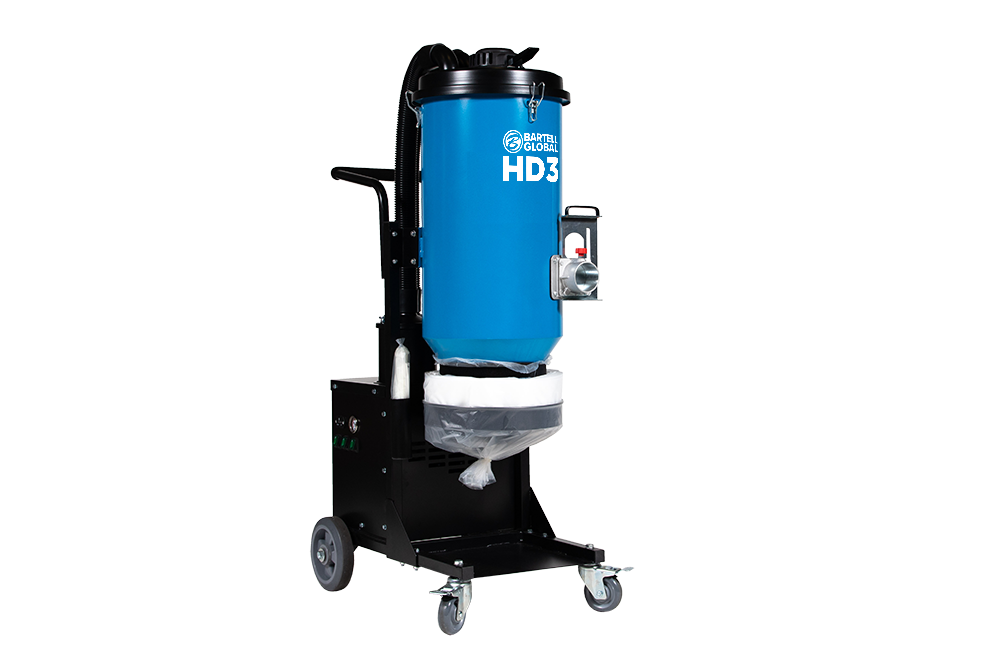

Bartell HD3 HEPA Vacuum

Bartell HD3 HEPA Vacuum

Regular price $6,715.00 CAD
Regular price Sale price $6,715.00 CAD
Sale Sold out
Volts

Bartell Global's HD series dust extractors feature a two-stage filtering system with jet-pulse filter cleaning. Remove up to 99.97% of dangerous airborne particulates to keep your operators safe and your business compliant with environmental regulations. With three separate motors with individual switches, the suction can be adjusted for different applications as needed.

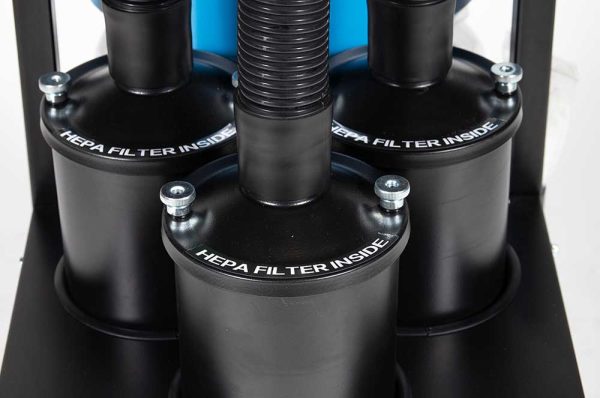

  • Equipped with 3 HEPA filters which remove at least 99.97% of airborne particles down to 0.3 micrometers in diameter securing a high standard of quality and safety
  • 3 individual motor switches provide variable suction strength and power
  • Reverse-air jet-pulse filter cleaning system effectively cleans and removes dust build-up on the filters
  • Easy-to-use inlet closure eliminates the need to remove hoses when pulsing and cleaning filters
  • Easily connects to hand-operated power tools to extract concrete dust while cutting and grinding
  • Equipped with a continuous-bag system for safe & easy disposal of concrete dust

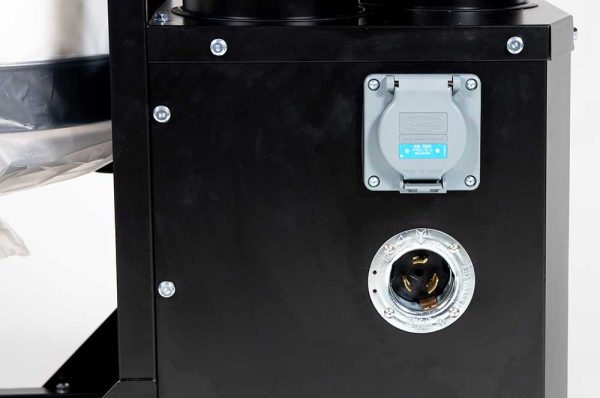

  • 30 Amp distribution box
  • Coems with 25ft hose and floor wand
HD3
Volts 120 220
Amps 16 12
Inlet Diameter 2.5" (63mm) 2.5" (63mm)
Power (hp) 3.2hp 4.8hp
Air Flow (cfm) 288 356
Water lift (inches) 74 90
Pre-filter (F8) >99.5% @1.0um 48 ft2 (4.5m2) 48 ft2 (4.5m2)
HEPA Filter (H13) >99.99% @0.3um 39 ft2 39 ft2
Length 31" (78cm) 31" (78cm)
Width 23" (59cm) 23" (59cm)
Height 58" (146cm) 58" (146cm)
Weight 149 lbs (68kg) 141 lbs (64kg)
