Bartell Global

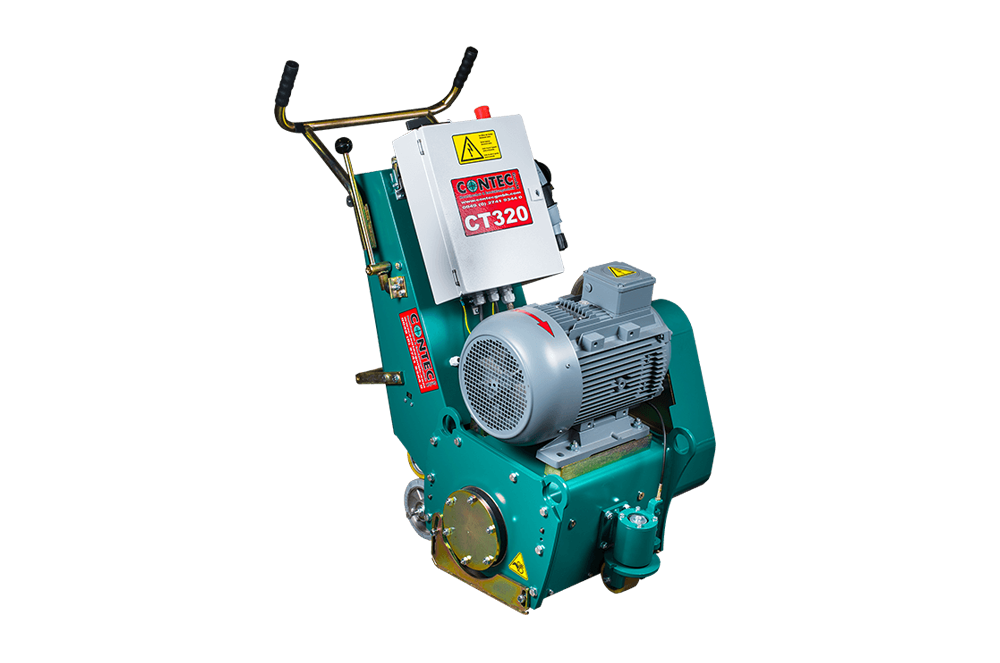

Bartell CT320 Scarifier / Shaver
Bartell CT320 Scarifier / Shaver
Regular price
$24,435.00 CAD
Regular price
Sale price
$24,435.00 CAD
Unit price
/
per
Couldn't load pickup availability
The largest and most aggressive floor planer in Bartell Global's line of scarifiers, made for the absolute toughest applications and floors. Precision-aligned, heavy-duty bearings ensure low maintenance and trouble-free operation of the machine.
The CT320 is capable of cutting depths down to 1" (25mm). If deeper depths are necessary, this model can be ordered in the low chassis version, enabling cutting depths of 1.5"
(40mm).
- Variable speed drive unit
- Ergonomically dampened handle bars
- Extensive range of cutting tools
- Applications include removal of road markings, coatings, and membranes; surface texturing; scarifying; planing/shaving; grooving; cleaning; de-scaling
CT320 | ||
Part Number | CTPCT320 | CTPCT320LC |
---|---|---|

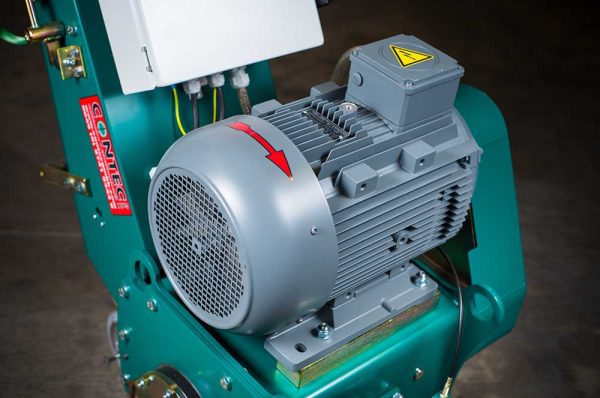

Power Source | Electric Motor: 23hp 480 V, 60Hz, 3-Phase, 25A | |
Maximum Working Width | 12.6" (32cm) | |
Length | 43" (109cm) | |
Width | 24" (61cm) | |
Height | 43" (109cm) | |
Weight | 507 lbs (230kg) | |
Diameter of Diamond Blades (for shaving/planing) | 11.8" (30cm) | |
Diameter of Cutters (for scarifying) | 3" (8cm) |
